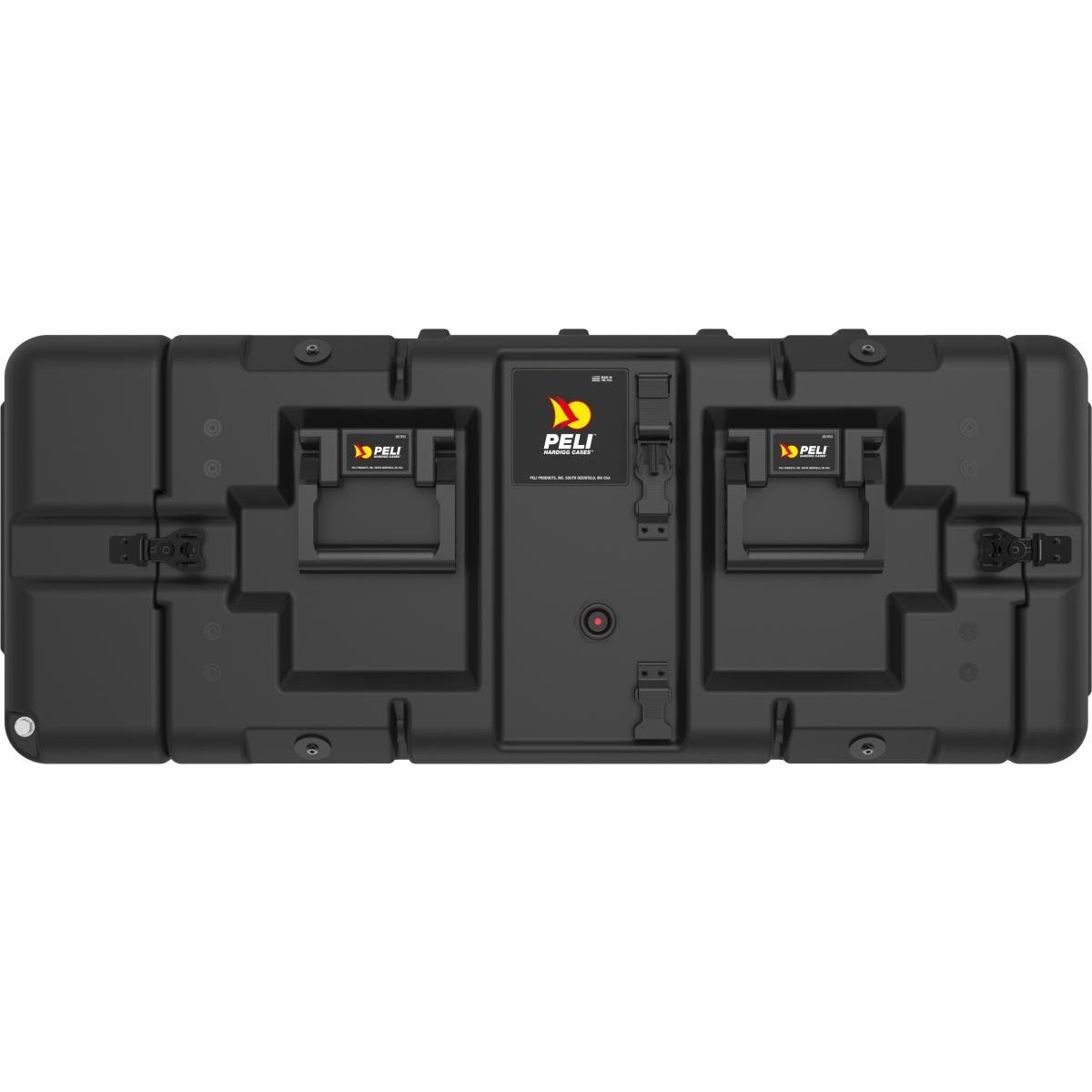

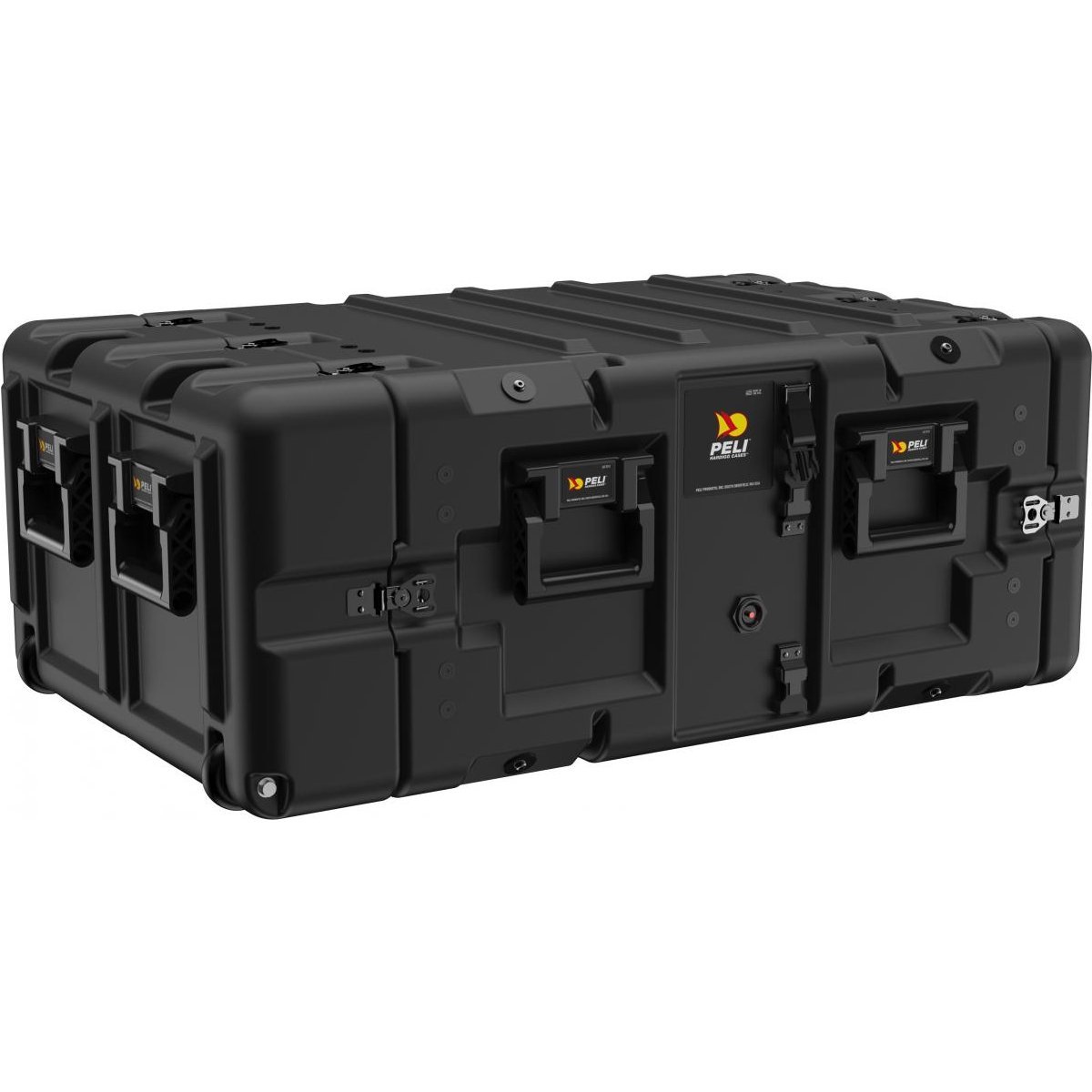

Peli 24 Inch Super V 5U Shock Rack Mount Case

Peli 24" Super V 5U Rack Mount Case

The Super-V Series 5U rack mount case has a weight range of 80-100 lbs. per case, and is REACH and RoHs compliant.

The Super-V 4U from Peli-Hardigg is a rack mount case with professional grade features engineered to securely transport your fragile equipment. It includes a shock mounted high-strength 19-inch steel frame with 24-inch (610 mm) depth. It has one 5.2 inch and one 2.2 inch lid with handles on the latter and moulded-in rear edge castors, making it easy to transport your gear. It also includes comfort grip plastic handles, lid hangers for storing the lids while in use, coupling catches, anti-reflective black hardware and a sealed gasket and pressure relief valve to keep the container airtight and watertight.

The case is exceptionally strong with moulded-in ribs to provide secure non-slip stacking of matched-size cases.

• RACK HEIGHT:  8.75" (22.2 cm)
• RACK DEPTH:  24.00" (61 cm)
• INTERIOR LID DEPTH:  2.20" (5.6 cm)
• INTERIOR BACK LID DEPTH:  5.20" (13.2 cm)
• WEIGHT:  55.00 lbs (24 .9kg)
• Manufactured in Europe

Features:

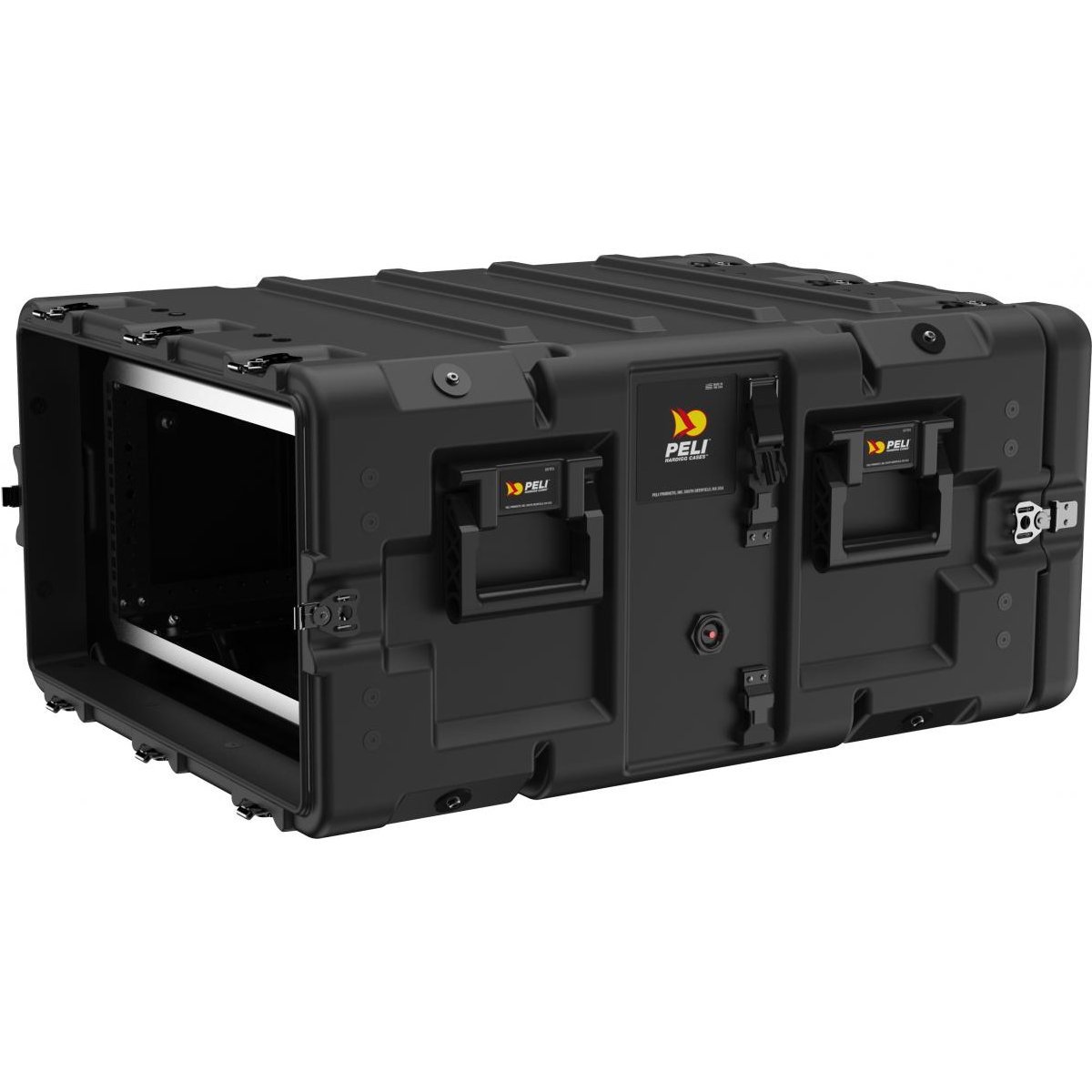

• Square hole 19" width rack frame fixed square hole frame for universal equipment fit

• M6 metric clip nuts included

• Manual purge valve

• O-ring seal

• 5.1cm (2”) and 12.7cm (5”) lid with reinforced corners and edges

• REACH and RoHS compliant

• High-strength steel rack frame supports equipment from 10 - 50 kg

• Designed to meet the requirements of Def Stan 81-41 Level J, Mil Standard 810, STANAG 4340 and other European standards.

• Designed to meet ANSI/EIA-310-C for universal rack mounting hole patter

• 10 different models, frame heights 4-12U in two depths, 480 and 610mm

• Fixed square hole frame for universal equipment fit

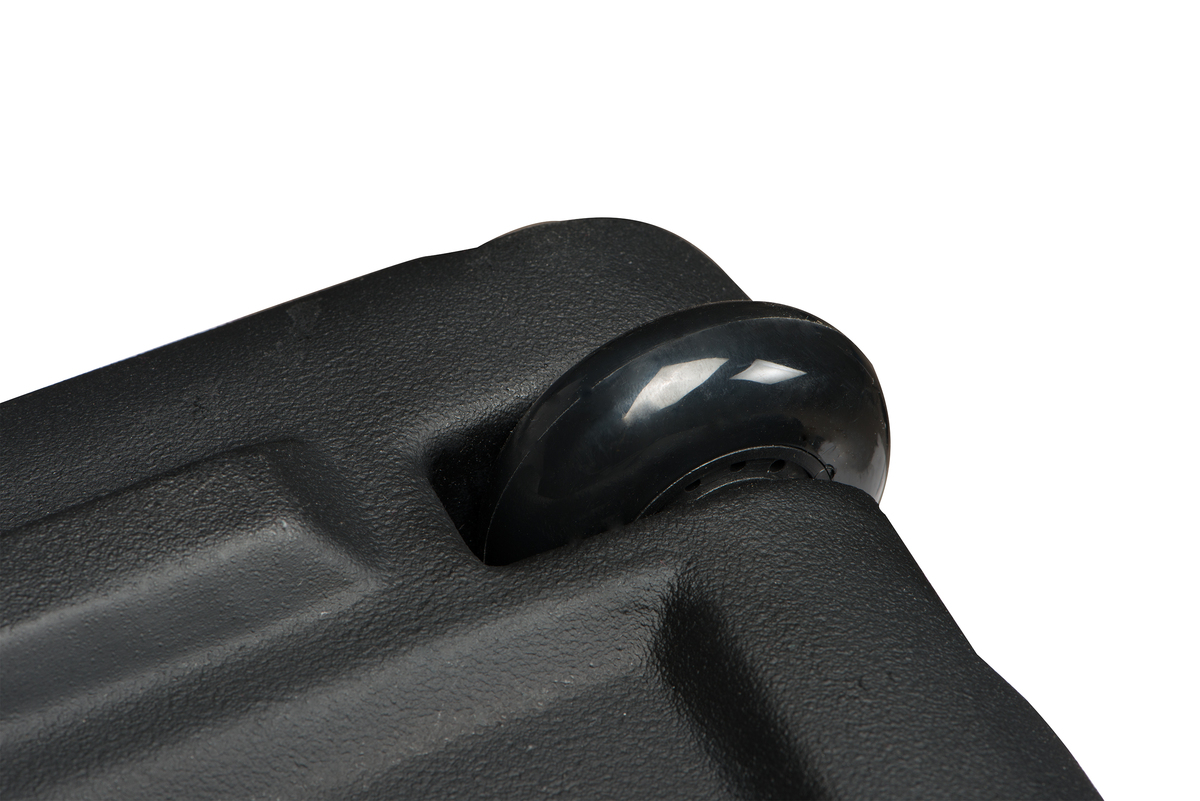

• Molded in rear edge casters with handles on the lid for ease of movement

• Comfort Grip plastic handles

• Lid Hangers for lid storage while in use
