Peli 33 Inch Classic V-Series 4U Rack Case
Hover image to zoom or click to expand.
Peli 33 Inch Classic V-Series 4U Rack Case
Peli 33 Inch Classic V-Series 4U Rack Case
Peli 33 Inch Classic V-Series 4U Rack Case
Peli 33 Inch Classic V-Series 4U Rack Case
Peli 33 Inch Classic V-Series 4U Rack Case
Peli 33 Inch Classic V-Series 4U Rack Case
Peli 33 Inch Classic V-Series 4U Rack Case
  • Peli 33 Inch Classic V-Series 4U Rack Case Price Match Promise
  • Peli 33 Inch Classic V-Series 4U Rack Case Delivery included to mainland
  • European Delivery - Peli 33 Inch Classic V-Series 4U Rack Case available to over 35 countries

Peli 33 Inch Classic V-Series 4U Rack Case

Internal Dimensions L: 838 x W: 483 x D: 178mm

  • £2301.10 inc VAT (£1917.58 ex VAT)
  • CALL 01902 324734 OR CHAT ONLINE FOR OUR BEST DAILY PRICES

  • UK MAINLAND DELIVERY INCLUDED*

    View delivery tab below for more information

Peli 33 Inch Classic V-Series 4U Rack Case Information

Internal Dimensions

Length mm 838
Width mm 483
Depth mm 178

External Dimensions

Length mm 1163
Width mm 686
Depth mm 371

Weight (kg)

Overall Weight 24.50

Rack Sizes

Space Units Total 4U
Rackable Depth 33"
Rack Depth Rail To Rail 33"

Peli Classic V-Series 4U Rack Mount Case

  • Off-the-shelf Rack Mount Case With Pro-Grade Features
  • RACK HEIGHT: 7.00" (17.8 cm)
  • RACK DEPTH: 33.00" (83.8 cm)
  • INTERIOR LID DEPTH: 2.50" (6.4 cm)
  • INTERIOR BACK LID DEPTH: 5.25" (13.3 cm)
  • WEIGHT: 54.00 lbs (24.5 kg)

Drops and impact are an obvious no-no with electronics, but vibration puts damaging repetitive stress on delicate parts and soldered joints. That’s why you’ll find 8 heavy duty rubber shock mounts to isolate the frame inside the shell. The polymer outer shell absorbs impacts, and the shock mount inside dissipates residual movement. Rack mount cases without shock mounts transfer impact forces directly to the electronics inside.

Pelican-Hardigg™ V-Series Cases are built utilizing a full-boxed 19” steel rack with a industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. These cases also include clip nuts - just attach the clip nut onto a square hole and you’ve got a secure, threaded mount. We even ship the case with your choice of 10-32 Imperial or M6 Metric clip-nuts.

  • Engineered to provide secure transport for rack mountable electronics
  • Available in 3U, 4U, 5U, 7U, and 9U
  • Weight ranges for 3U – 5U = 80-100 lbs. per case
  • Weight ranges for 7U – 9U = 100-170 lbs. per case
  • Fixed square hole frame for universal equipment fit
  • 2” Front Lid, 5” Rear Lid
  • 4 removable heavy duty bottom casters
  • Stainless Steel Handles
  • Lid Hangers for lid storage while in use
  • Anti-reflective black hardware
  • Coupling catches for secure stacking
  • Sealed gasket and PRV keeps container watertight and eliminates over pressurisation
  • Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
  • REACH and RoHs compliant

Peli 33 Inch Classic V-Series 4U Rack Case Features

Fixed Square Hole Frame

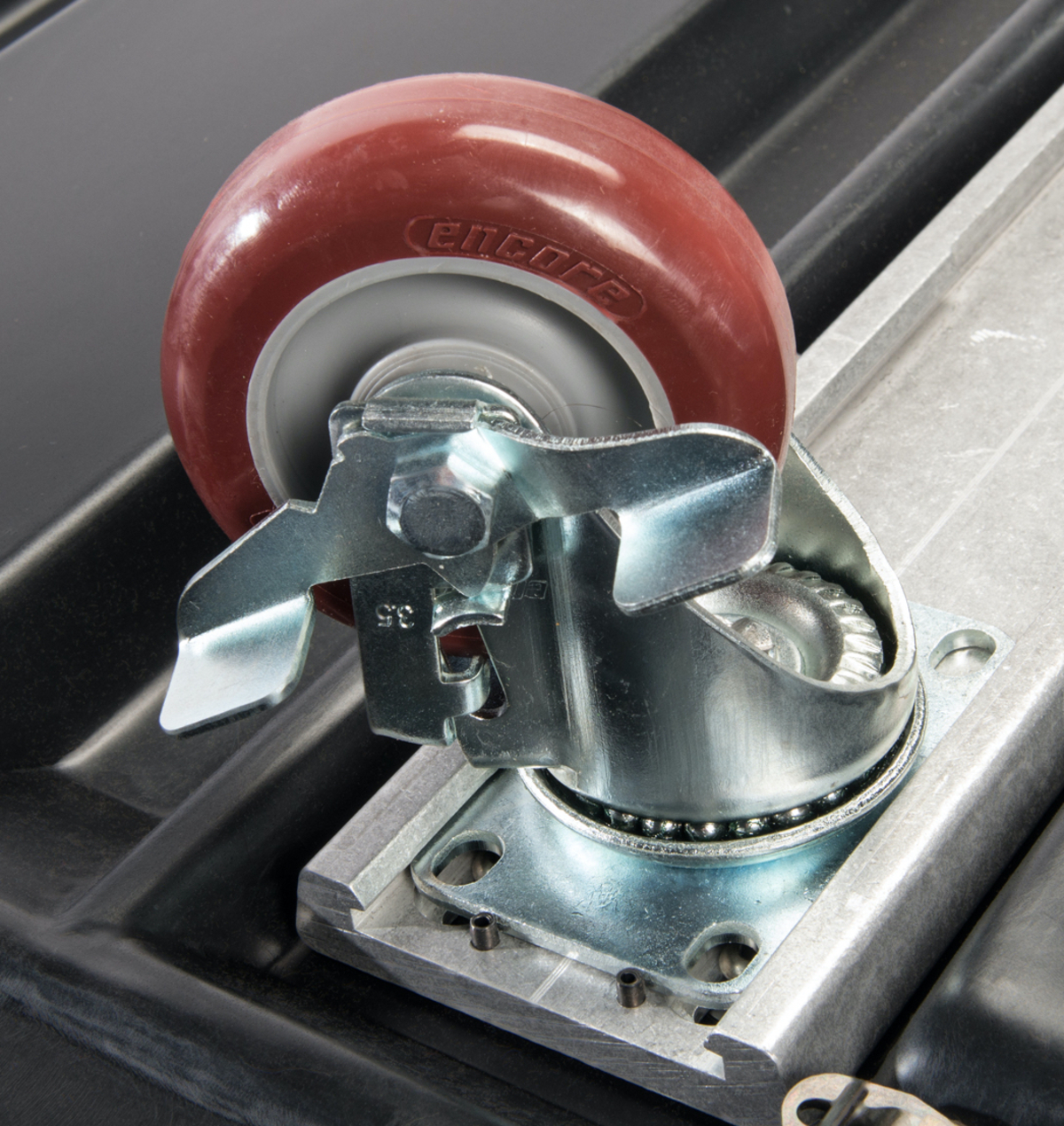

Removable Castors
Shock Sounted
Anti Shear Locks

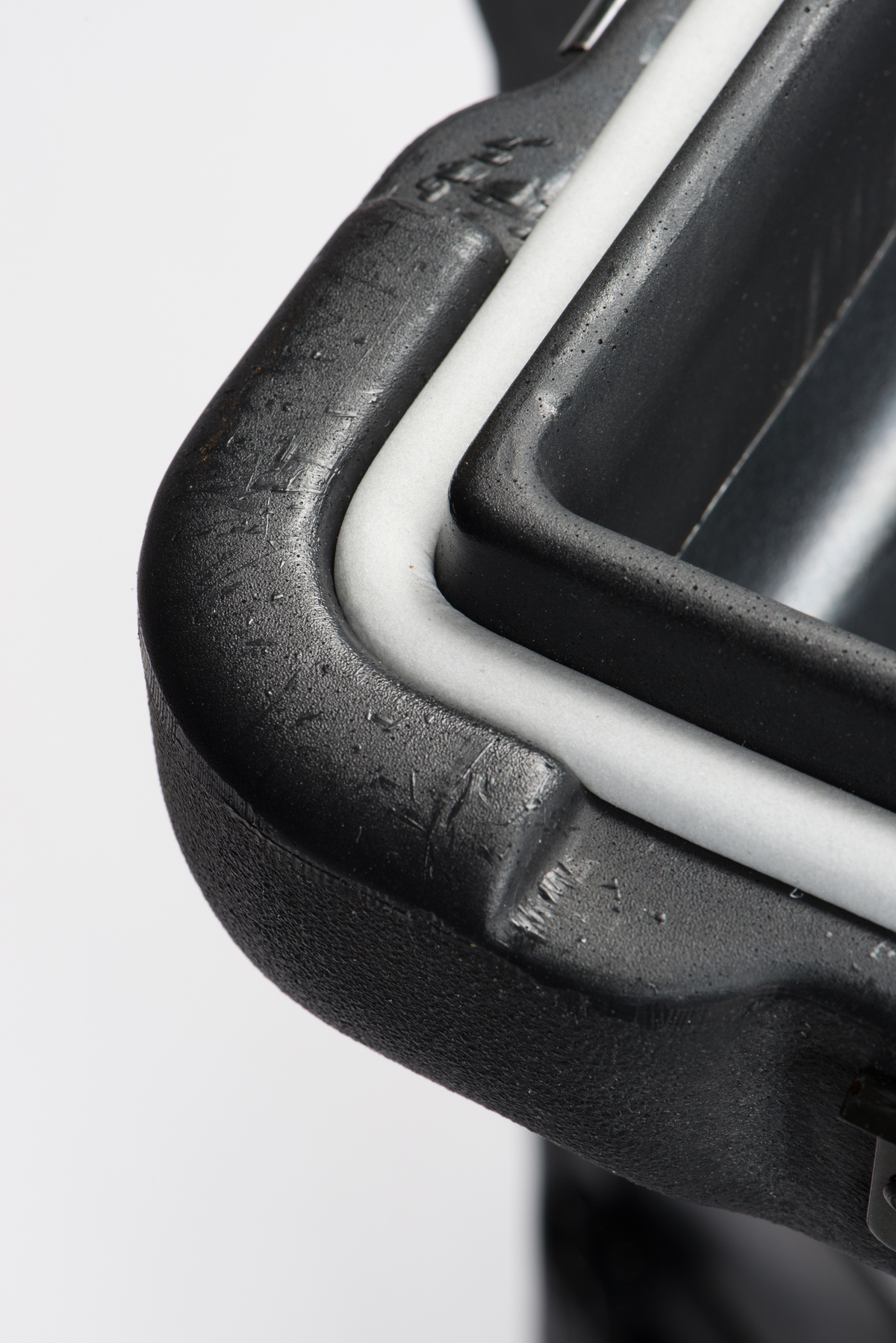

O -ring for a Water Tight Seal.
Stainless steel Handles
Fixed Square Hole Frame
Universal Mounting Square Hole
Stackable
Catches for Secure Stacking

Peli 33 Inch Classic V-Series 4U Rack Case Downloads

CLASSIC-V-SERIES-4U
